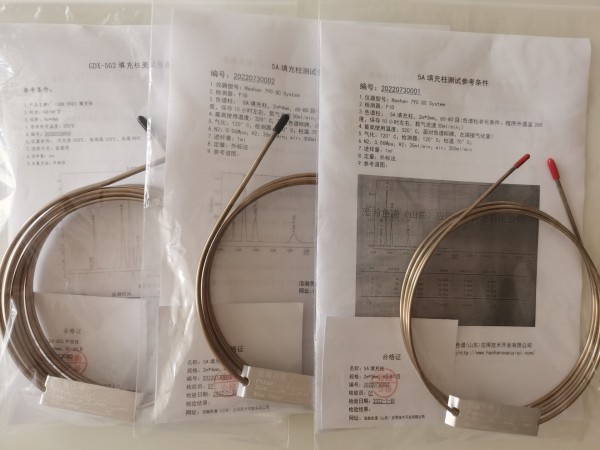

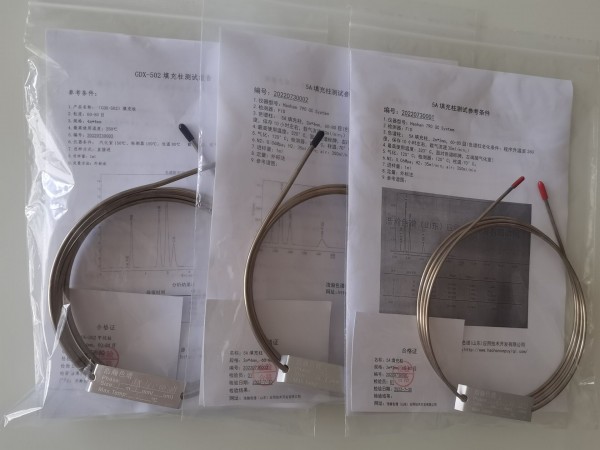

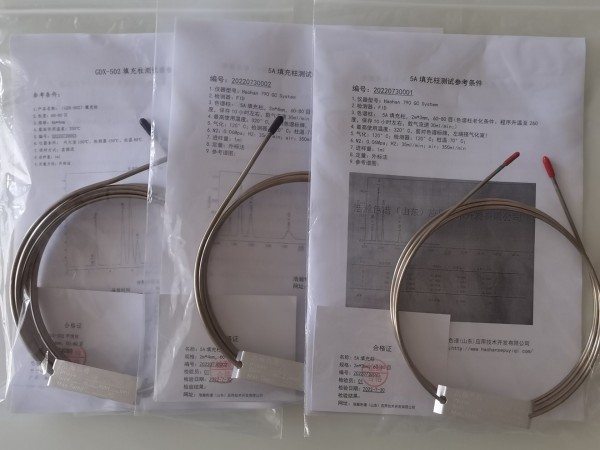

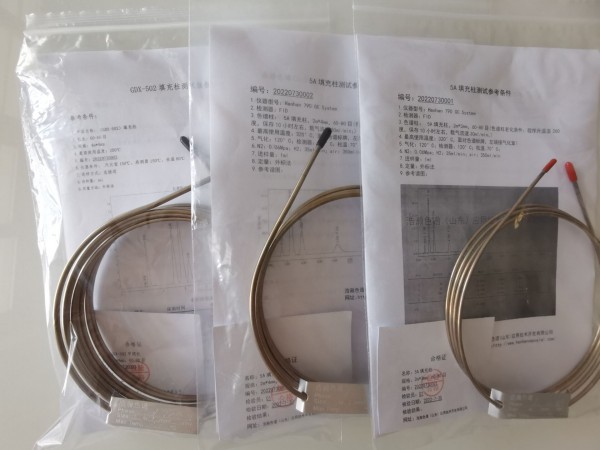

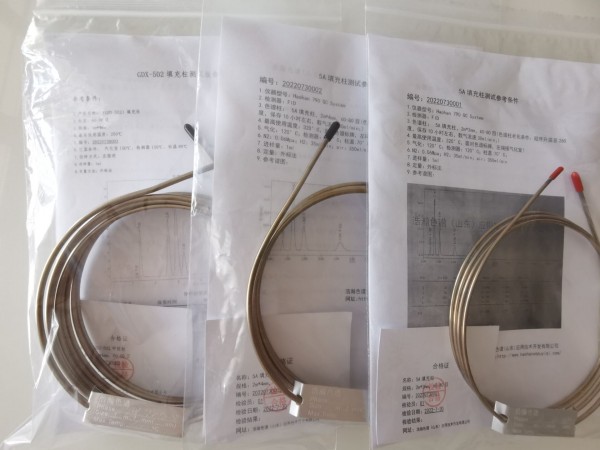

名稱：5?填充柱

規格：2m*3mm，60-80目

使用溫度：320°C

編號：20220730001

名稱：GDX-502填充柱

規格：4m*4mm，60-80目

編號：20220730003

ZUI高溫度：250°C

應用：變壓器油溶解氣

現代工業生產離不開電網提供的電能，而變壓器是電網中重要的關鍵設備,油浸式變壓器的內部故障可以導致變壓器油中溶解氣體類型和濃度發生變化,利用變壓器油中溶解氣體產生機理可以診斷變壓器內部是否存在放電性故障和熱故障。油中溶解氣體分析是診斷油浸式變壓器潛伏性故障非常有效的方法，對實現變壓器運行狀態檢修具有重要作用。因此對變壓器油中溶解氣體進行定期監測可以電網長期安全運行。

變壓器油中溶解氣體離線檢測脫氣所用的方法為基于溶解平衡原理的機械振蕩法，氣體檢測采用氫火焰檢測器或熱導檢測器。

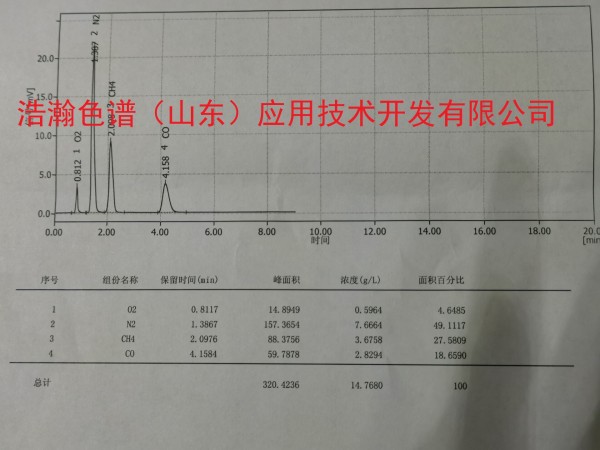

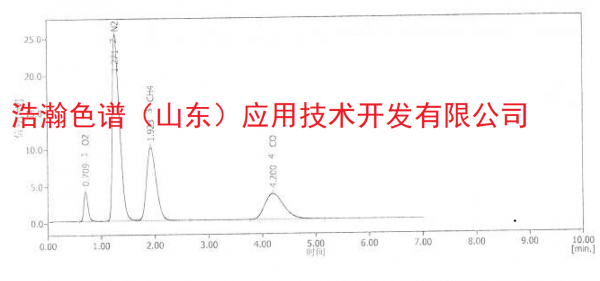

2M*4MM的5?+4M的GDX-502填充柱   測試譜圖：



2M*4MM 5?+4M GDX-502 packed column
2M*4MM 5?+4M GDX-502 packed column Details:

Name: 5? Packed Column

Specifications: 2m*3mm, 60-80 mesh

Operating temperature: 320°C

Number: 20220730001


Name: GDX-502 Packed Column

Specifications: 4m*4mm, 60-80 mesh

Number: 20220730003

ZUI high temperature: 250°C

Application: Transformer Oil Dissolved Gas

Modern industrial production is inseparable from the electric energy provided by the power grid, and the transformer is an important key equipment in the power grid. The internal fault of the oil-immersed transformer can lead to changes in the type and concentration of dissolved gas in the transformer oil. The use of the mechanism of dissolved gas in the transformer oil can be used to generate gas. Diagnose whether there are discharge faults and thermal faults inside the transformer. Dissolved gas analysis in oil is a very effective method for diagnosing latent faults of oil-immersed transformers, and plays an important role in realizing the maintenance of transformer operating conditions. Therefore, regular monitoring of dissolved gas in transformer oil can ensure long-term safe and reliable operation of the power grid.

The method used for offline detection and degassing of dissolved gas in transformer oil is a mechanical oscillation method based on the principle of dissolution equilibrium, and gas detection adopts a hydrogen flame detector (fid) or a thermal conductivity detector (tcd).


2M*4MM 5?+4M GDX-502 packed column Test spectrum:
