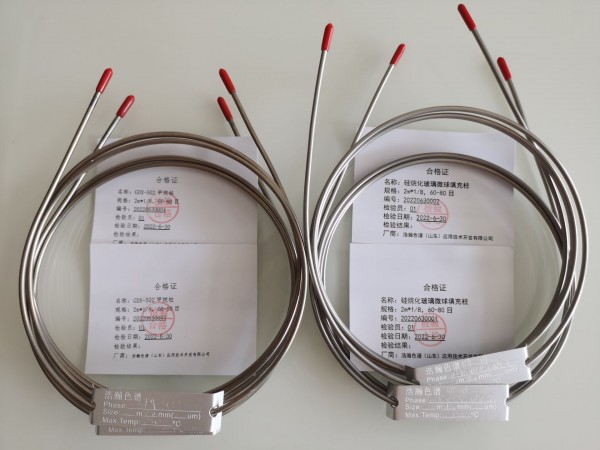

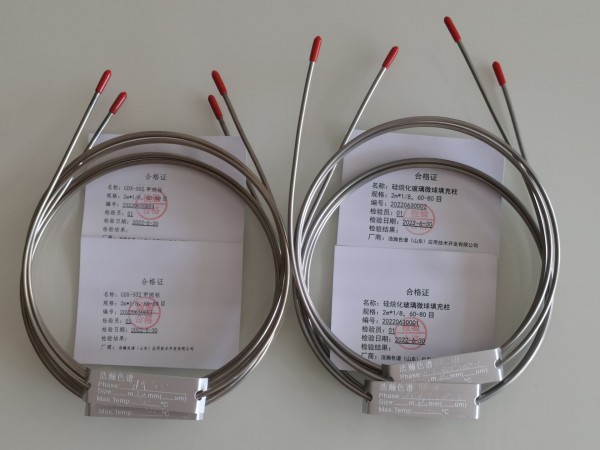

名稱：GDX-502甲烷柱

規格：2m*1/8，60-80目

編號：20220630003

溫度：250°C

名稱：硅烷化玻璃微球填充柱

規格：2m*1/8，60-80目

型號：HH-THC-2

編號：20220630001

使用溫度：300°C

應用：

HJ 38-2017 固定污染源廢氣 總烴、甲烷和非甲烷總烴的測定 氣相色譜法

HJ 604-2017HJ 604-2017環境空氣 總烴、甲烷和非甲烷總烴的測定 直接進樣-氣相色譜法


浩瀚色譜（山東）應用技術開發有限公司建立了雙閥雙柱單氫火焰檢測器快速檢測非甲烷總烴(NMHCs)的氣相色譜分析方法,通過直接檢測總烴和甲烷值,以及兩者差值計算非甲烷總烴值,同時后切換十通閥將高沸點組分反吹出甲烷柱,有效避免了出峰較晚的高沸點組分對分析結果的影響。方法能準確測量總烴、甲烷和非甲烷總烴,分析時間小于1 min,標準曲線線性達到0.9999。方法精密度優于0.2%,檢出限為甲烷0.02 mg/m~3,非甲烷總烴0.026 mg/m~3(以甲烷計),滿足HJ/T38-1999性能指標要求。

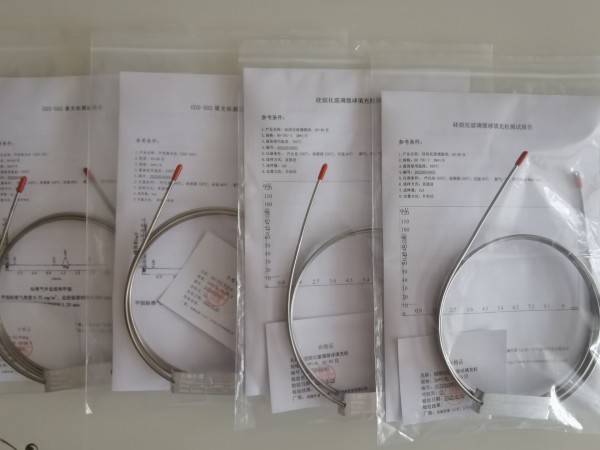

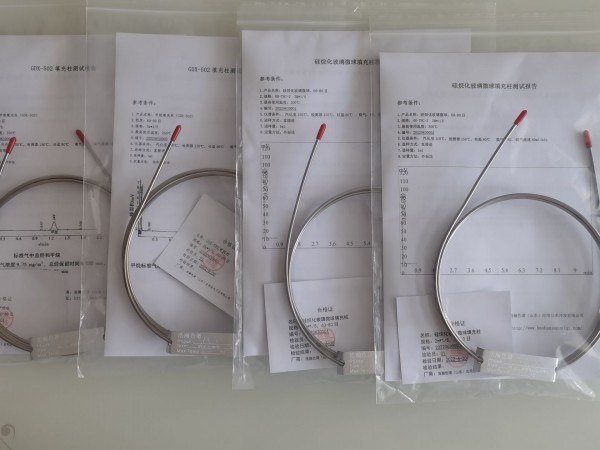

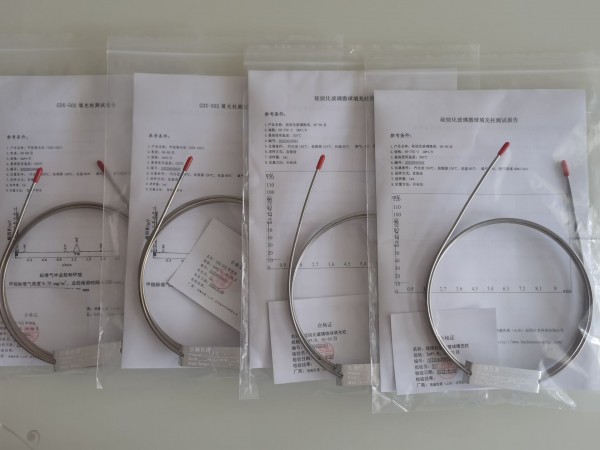

GDX-502甲烷柱及HH-THC-2總烴柱  測試譜圖：



GDX-502 methane column and HH-THC-2 total hydrocarbon column
GDX-502 methane column and HH-THC-2 total hydrocarbon column Details:

Name: GDX-502 Methane Column

Specifications: 2m*1/8, 60-80 mesh

Number: 20220630003

Temperature: 250°C





Name: Silanized Glass Microsphere Packed Column

Specifications: 2m*1/8, 60-80 mesh

Model: HH-THC-2

No.: 20220630001

Operating temperature: 300°C



application:

HJ 38-2017 Waste gas from stationary pollution sources-Determination of total hydrocarbons, methane and non-methane total hydrocarbons-Gas chromatography

HJ 604-2017HJ 604-2017 Ambient air-Determination of total hydrocarbons, methane and non-methane total hydrocarbons-Direct injection-gas chromatography


Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has established a gas chromatographic analysis method for the rapid detection of non-methane total hydrocarbons (NMHCs) with a double-valve double-column single-hydrogen flame detector. The non-methane total hydrocarbon value was calculated, and finally the ten-way valve was switched to backflush the high-boiling point components out of the methane column, which effectively avoided the influence of the high-boiling point components with late peaks on the analysis results. The method can accurately measure total hydrocarbons, methane and non-methane total hydrocarbons, the analysis time is less than 1 min, and the linearity of the standard curve reaches 0.9999. The precision of the method was better than 0.2%, and the detection limit was 0.02 mg/m~3 for methane and 0.026 mg/m~3 for non-methane total hydrocarbons (calculated as methane), which met the performance requirements of HJ/T38-1999.

Test spectrum of GDX-502 methane column and HH-THC-2 total hydrocarbon column:
