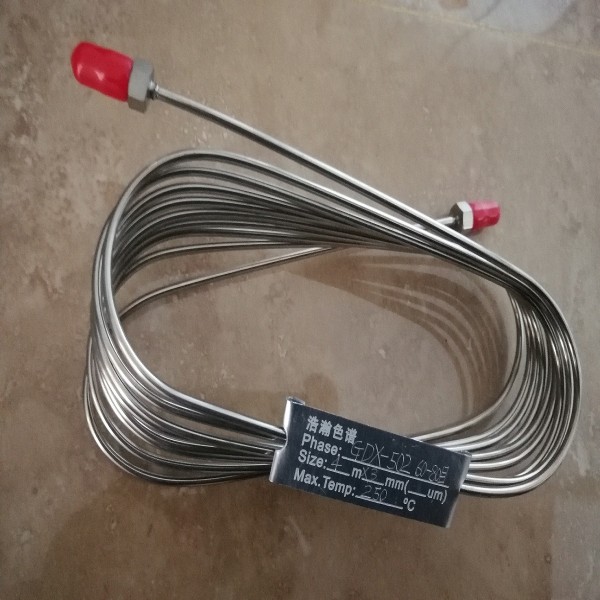

填充柱1

固定相：高分子小球

規格：4m*3mm

粒度：60-80目

型號：GDX-502

應用：二氧化碳及C1-C2烴分析

填充柱2

固定相：分子篩

型號：MS13X

規格：2m*3mm

應用：永jiu氣體H2/O2/N2/CO/CH4測定

       各大鋼鐵企業均需分析煤氣的熱值成分，并計算煤氣熱值以滿足不同生產部門的需要，同時，為了產品質量，也需要分析各加熱爐內高純保護氣組分含量。多維氣相色譜同時使用毛細管柱和填充柱混合色譜柱，兼?zhèn)涿?xì)管柱和填充柱的優點；采用自動切換載氣的辦法，實現對鋼鐵企業煤氣中烴類和性氣體的分析。

        滕州市浩瀚色譜儀器技術服務有限公司，分析了多維氣相色譜檢測煤氣熱值組分的準確度和精密度，并對氣體組分多點校正標準曲線進行了研究。結果表明，多維氣相色譜分析煤氣組分時具有高的準確度和精密度，多點校正曲線也具有好的回歸線性，可以應用于煤氣的熱值及高純爐氣成分分析。

多維氣相色譜在鋼鐵企業氣體成分 測試譜圖：



Multidimensional gas chromatography in the gas composition of iron and steel enterprises
Multidimensional Gas Chromatography in Steel Industry Gas Composition Details:

Packed column 1

Stationary phase: polymer pellets

Specification: 4m*3mm

Particle size: 60-80 mesh

Model: GDX-502

Application: Carbon dioxide and C1-C2 hydrocarbon analysis



Packed column 2

Stationary phase: molecular sieve

Model: MS13X

Specification: 2m*3mm

Application: Yongjiu gas H2/O2/N2/CO/CH4 determination

       All major iron and steel companies need to analyze the calorific value of coal gas and calculate the calorific value of coal gas to meet the needs of different production departments. At the same time, in order to ensure product quality, it is also necessary to analyze the content of high-purity protective gas components in each heating furnace. Multidimensional gas chromatography uses capillary column and packed column mixed chromatographic column at the same time, and has the advantages of capillary column and packed column. The method of automatic switching of carrier gas is adopted to realize the analysis of hydrocarbons and permanent gases in coal gas of iron and steel enterprises.

        Tengzhou Haohan Chromatography Instrument Technology Service Co., Ltd. analyzed the accuracy and precision of multi-dimensional gas chromatography to detect gas calorific value components, and studied the multi-point calibration standard curve of gas components. The results show that multi-dimensional gas chromatography has high accuracy and precision in the analysis of coal gas components, and the multi-point calibration curve also has good regression linearity, which can be applied to the analysis of coal gas calorific value and high purity furnace gas composition.

Multidimensional gas chromatography in the steel enterprise gas composition test spectrum:
