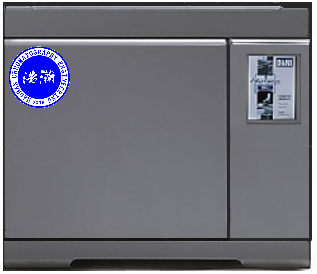

GC column aging box
Detailed information of GC column aging box:

Due to the fast analysis speed, high sensitivity, good separation effect, and short analysis period of gas chromatograph, it has won more and more users in the past two decades. In the laboratories of various scientific research and production departments such as petrochemical industry, environmental protection, medicine and health, biochemistry, the number of gas chromatographs is increasing day by day. Especially in many laboratories and analysis rooms in the petrochemical industry, gas chromatograph is an indispensable analysis tool.
The packed gas chromatographic packed column can only be put into use after the aging treatment (that is, the flow and temperature treatment); the same time, when the column efficiency decreases, the chromatographic column also needs to be aged.
Generally, manufacturers often use gas chromatographs to age, which often affects the normal use of the instrument, and the efficiency is low, and the detector cannot be connected.

Tengzhou Haohan Chromatography Instrument Technology Service Co., Ltd. has developed a chromatographic column aging box, which can simultaneously age 8 chromatographic columns and capillary columns at a time. Packed columns include disc type (represented by Agilent) and U type (Shimadzu) ,efficient.

GC column aging box Technical parameters:
1. Working conditions

1.1. Temperature: 5°C - 35°C

1.2. Humidity: 5 – 85%

1.3. Power supply: AC 220±10%; 50±0.5Hz

2. Column thermostat

2.1. Temperature: room temperature 5°C - 400°C

2.2. Program temperature rise: 7 steps, 16 steps can be expanded

2.3. In 5min, cool down from 400°C to 50°C

2.4. Temperature accuracy: for every 1°C fluctuation of room temperature, the temperature fluctuation of the column oven <0.1°C
2.5 Flow of each channel: 0-200ml/min.
3. Display 320*240 inch Chinese and English display interface
4. Power: 2000w






氣相色譜柱老化箱
氣相色譜柱老化箱詳細信息：

由于氣相色譜儀分析速度快、靈敏度高、分離效果好、分析周期短,近二十多年來,贏得了愈來愈多的用戶。在石油化工、環境保護、醫藥衛生、生物化學等各個科研、生產部門的實驗室中,氣相色譜儀的數量與日俱增。特別是在石油化工部門的許多實驗室、分析室中,氣相色譜儀更是必不可少的分析工具。
裝填好的氣相色譜填充柱,要經過老化處理(即進行流量和溫度處理)后才能投入使用；同樣使用時間久了，柱效降低時，色譜柱同樣需要老化。
一般廠家往往會借助氣相色譜儀老化，往往會影響儀器正常的使用，效率低，且不能接檢測器。

滕州市浩瀚色譜儀器技術服務有限公司，研發出色譜柱老化箱，一次可同時老化8根色譜柱，也可老化毛細管柱，填充柱包括圓盤型（安捷倫為代表），U型（島津），效率高。

氣相色譜柱老化箱 技術參數：

1. 工作條件

1.1. 溫度： 5°C -- 35°C

1.2. 濕度：5 – 85%

1.3. 電源：AC 220±10%；50±0.5Hz

2. 柱溫箱

2.1. 溫度：室溫5°C -- 400°C

2.2. 程序升溫：7階程升，可擴充16階

2.3. 在5min內，從400°C降溫到50°C

2.4. 溫度精度：室溫每波動1°C ，柱溫箱的溫度波動＜0.1°C
2.5各路流量：0-200ml/min。
3.顯示屏 320*240英寸中英文顯示界面
4.功率：2000w
