13X填充柱在天然氣檢測中的應用,液化石油氣，二甲醚，甲縮醛，乙縮醛，乙醇，室內空氣，變壓器油，多氯聯苯，植物油，6號溶劑殘留，頂空進樣器，多氯聯苯，植物油，脂肪酸，氨水

13X填充柱在天然氣檢測中的應用
13X填充柱在天然氣檢測中的應用 詳細信息：

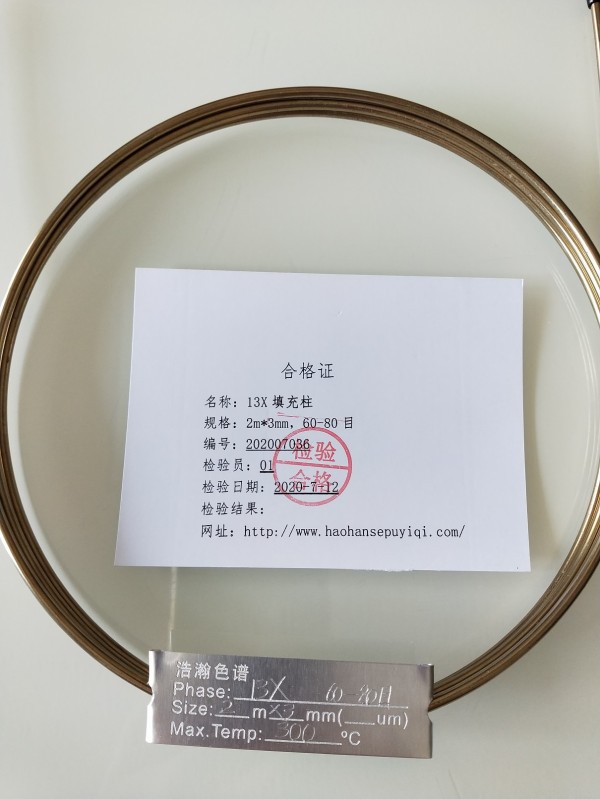

名稱：填充柱

固定相：分子篩

粒度：60-80目

規格：2m*3MM

型號：MS13X

應用：天然氣中O2,N2,CH4分離

滕州市浩瀚色譜儀器技術服務有限公司，采用氣相色譜法快速測定天然氣中14種組分的含量。通過1次進樣自動分流后,分別用4根微型色譜柱鏈接4個的熱導檢測器在5min內同時分離測定天然氣中的甲烷、乙烷、丙烷、氮?dú)狻⒀鯕?、氦氣、氫氣、二氧化碳及丁烷、戊烷的同分異?gòu)體等組分。14種組分的濃度在一定范圍內呈線性,檢出限（3S/N）在11~19μmol·mol^-1之間,測定值的相對標準偏差（n=8）小于1%。以標準物質GBW（E）061322對儀器進行校準,分析了四川地區的天然氣中14種組分。

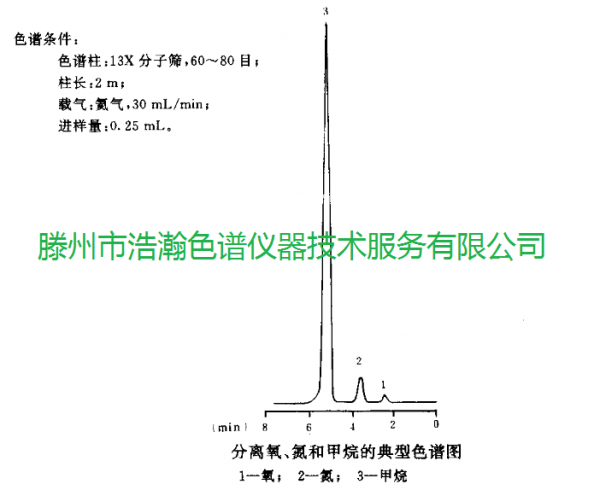

13X填充柱在天然氣檢測中的應用 測試譜圖：

Application of 13X packed column in natural gas detection
Application of 13X packed column in natural gas detection Details:

Name: Packed column

Stationary phase: molecular sieve

Granularity: 60-80 mesh

Specification: 2m*3MM

Model: MS13X

Application: Separation of O2, N2, CH4 in natural gas



Tengzhou Haohan Chromatography Instrument Technology Service Co., Ltd. uses gas chromatography to quickly determine the content of 14 components in natural gas. After one sample injection is automatically split, 4 micro-columns are connected to 4 independent thermal conductivity detectors to separate and determine methane, ethane, propane, nitrogen, oxygen, helium, hydrogen, and hydrogen in natural gas within 5 minutes. Carbon dioxide, butane, pentane isomers and other components. The concentration of 14 components is linear within a certain range, the detection limit (3S/N) is between 11-19μmol·mol^-1, and the relative standard deviation (n=8) of the measured value is less than 1%. The instrument was calibrated with the standard material GBW (E) 061322, and 14 components in natural gas in Sichuan area were analyzed.

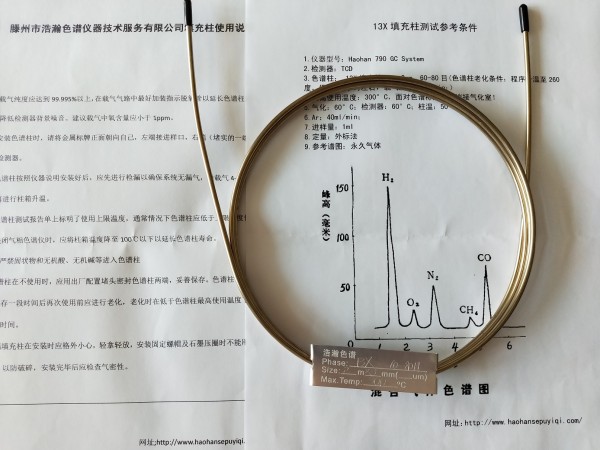

Application of 13X packed column in natural gas detection Test spectrum:
